Week-9 @RTEMS-GSoC-2025

Overview

This week, I completed the following tasks :

• Debugging and investigating why TAP interface is not created in SIS for GRETH lwIP driver
• Working on solving the buffer descriptor issue as told by mentors

Work completed this week

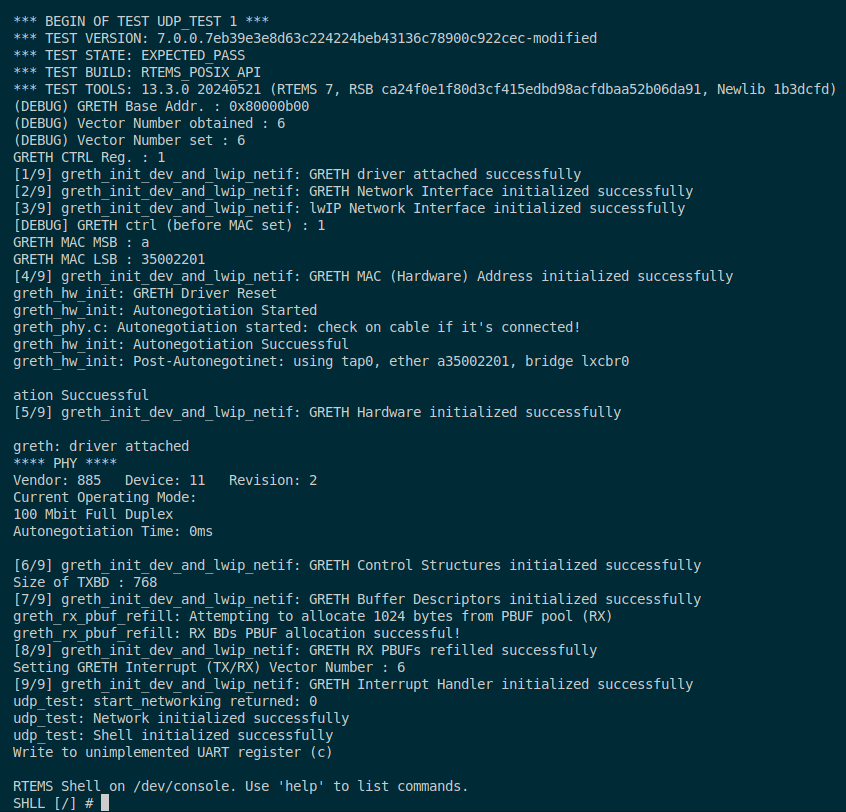

1. Debugging and investigating why TAP interface is not created in SIS for GRETH lwIP driver
   • The TAP inetrface is created in SIS when the GRETH Control Register’s CTRL_RE (Receive Enable) bit is set and MAC Address is not previously assigned.
   • However, in my code previously, I was setting the Hardware Address much before setting CTRL_RE flag, due to which there was hinderance in creation of tap interface. SO, shifting Hardware Address Initialization before setting CTRL_RE flag of GRETH Control Register solved this issue!

2. Buffer Descriptor Structure and Alignment :
   • The Buffer descriptors in RTEMS SIS GRETH Simulation were aligned to BASE_PNT = 0x400, while the buffer descriptors in GRETH lwIP at this time were aligned to a smaller value .
   • But GRETH requires a 10 bit i.e. 1kB alignment for descriptors, and each descriptor has to be 8 bytes wide, which was also confirmed from GRETH Legacy Driver code.
   • For non-gigabit mode the descriptors must be aligned to the size of descriptor table as obtained from NRD field from Status register, and for gigabit version, it has to be 1kB aligned.
   • So I worked on redesigning the Descriptor structure and its proper usage throughout the code.

Plans for next week

1. Work on gettig expected results from GRETH lwIP driver transmission mechanism
2. Start with reception mechanism code atleast to some extent
